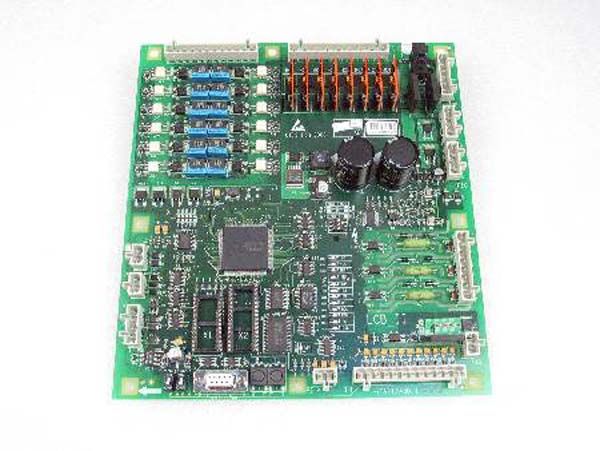

LIMITED CAR BOARD II (LCB II) (LCB2)

PCB LCB2 FOR MCS 120 & 220

This replaces the following boards:

GBA21240D1*
GCA21240D1*
GDA21240D1*
GEA21240D1
GFA21240D1
GCA21240D2*
GDA21240D2*
GEA21240D2
GFA21240D2
GCA21240D3*
GDA21240D3*
GEA21240D3
GFA21240D3

Please note: The 2 IC sockets (presently labelled X1 and X2) are UNPOPULATED.
*If you require the latest software (if upgrading from GDA21240D or lower) then please request: EProm GAA30893AAA10

EEProm = GAA30083AAD111-BLANK
this is the contract EEprom, we can only supply an unprogrammed one which will need to be programmed with the site variables on site

Wago connectors for LCB II GGA21240D10

P1/P6 = FAA176E12
P2/5/12/13 = FAA176E22
P4/9/10 = FAA176E44
P7 = FAA176J9
P8 = FAA176E6
P11 = FAA176E88
